Nullifire FJ400 Intuspan
£16.20A very pliable intumescent expansion joint with a high level of movement that is suitable for gaps up to 100 mm, providing up to 2 hours fire performance with no adhesive required in most situations.
Ideal for high vibration areas, such as lift shaft interfaces
Can accommodate regular cycles of high or low amplitude movement
Tolerates very large movements
Unaffected by moisture
Easy to install using finger pressure even in uneven gaps
Suits vertical & horizontal joints, and head of walls
Full dry systemPlease note: Selected items are Made To Order subject to a MOQ and an extended lead time – please see below
-
Nullifire FO230/FO323 Slotted Steel Angles & Straps
£26.12For securing fire barriers above partition walls in fire stopping applications.
Made from DX51D+Z275 NAC galvanised steel
20 x 6mm slotted holes @ 300mm Ctrs in centre on both sides of angle and centre of strap.
Meets relevant British Standards – see description below for more detailsPlease note – Selected items are Made To Order subject to an MOQ and an extended lead time see ‘Order References’ below
-
Nullifire FP170 Intucollar Intumescent Pipe Collars
£11.33Expands when exposed to fire, reinstating the fire performance of compartment walls and floors which have been penetrated by combustible pipes.
Up to 4 hours fire resistance – Tested to EN 1366-3
Tested with combustible pipes (PVC, PE, PP, SanPVC, Bevex, etc.), insulated non- combustible pipes (steel) and network cable bundles (up to 125 mm)
Flexible walls (stud partitions) or rigid walls (masonry, concrete) of 100 mm minimum thickness. Rigid (concrete) floors of 150 mm minimum thickness
Easy to install, stainless steel shell
Water resistant and non-corrosive: inert product
This new, improved version of FP170 is available in multiple sizes; other sizes are available to order by special request – contact our sales team on 0113 2455450 (option 2) or send a message to technical@rawlinspaints.com for more information. -
Nullifire FP220 Service Sleeve
£30.55A pipe closer device, comprising of an intumescent material within a stainless steel shell.
Expands when exposed to fire, reinstating the fire performance of compartment walls which have been penetrated by combustable pipes
Suitable for retrofit or inclusion prior to service installation, PE, HDPE, ABS, San+PVC, PP, PVC-C, UPONOR, DB, MLCP pipes
Up to 120 minutes fire protectionFP220 is required to be installed within a suitably tested substrate or included within other Nullifire tested system solutions.
Please note: Selected items are Made To Order subject to a MOQ and an extended lead time – please see below -
Nullifire FP302 Intustrap/Band
£251.02A rubber based product with graphite impregnation that creates an extremely flexible pipe closure device. The product remains dormant, until exposed to fire conditions, at which point it will expand to fill the space left by the melting combustible element. FP302 has a release tape to one side. This permits the thermal expansion of services, if required, and eases its application, allowing the product to slide freely along the pipe to its end location.
Up to 4 hours fire resistance – Tested to BS EN 1366-3 and BS 476 Pt 20-22
Suitable for use in many substrate types
Remains permanently flexible
Unaffected by moisture
Easy to inspect
CE marked
Simply link with duct tape -

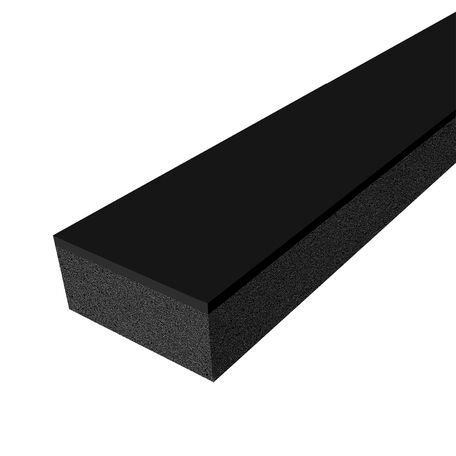

Nullifire FP333 Trunking Infill
Price range: £4.34 through £10.22FP333 Trunking Infill is a fire resistant compressible foam strip layered with high expansion intumescent material produced in three sizes. In a fire, the intumescent expands and hardens providing a fire and cold smoke barrier.
-
Nullifire FR230 Intucompound Fire Mortar
£30.94Gypsum based mortar used to reinstate the fire resistance performance of floor & wall constructions where they have been breached with apertures for the penetration of single or multiple services.
Up to 4 hours fire resistance – Tested to EN 1366-3 & 4
Provides a safe working platform for loads up to 2.5 kN/m²
1.21 m² without framework requirement
Load and impact capability after 50 hours only
Flows easily around and behind services
Rapid setting, zero shrinkage formulation
Can be used as pourable or trowel grade
Acoustic and thermal performance
Features Optifire+, a unique pigment technology, visible only with a specific Nullifire detector ; Optifire+ offers lifetime identification, and remains traceable even after a fire. -
Nullifire FS702 Intumastic Fire Resistant Acrylic Sealant
£42.26FS702 Intumastic is a water-based acrylic sealant which cures to give a firm but flexible fire seal, for both linear joints & service penetrations.
-

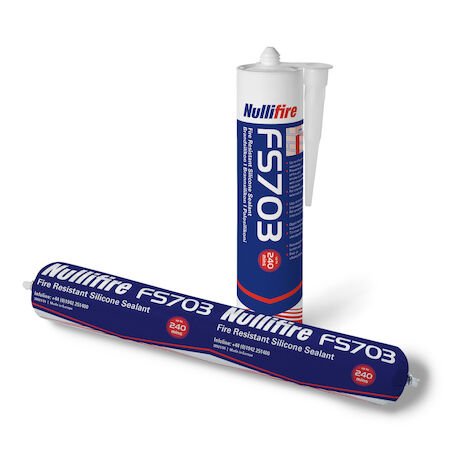

Nullifire FS703 Fire Resistant Silicone Sealant
£126.98FS703 is a low modulus, neutral cure, silicone sealant, suitable for linear gaps sealing in order to reinstate the fire performance in compartment walls & floors.
-
Nullifire FS709 Intumastic HP Intumescent Sealant
£232.39A heat-reactive, intumescent acrylic fire barrier mastic for internal use around services in walls and floors.
Seals around pipes, cables and cable trays.
Provides up to 4 hours of fire resistance.
60 to 120 min tack time (depending on temperature/humidity). -
Nullifire FS712 Intucoat Brush Grade
£50.70Water-based acrylic coating and adhesive, which may be used in conjunction with FB750 Intubatt, FB770 Intudeck and FJ220 Intubatt 3 as a bonding agent and a surface repair coating.
Up to 4 hours fire resistance – Tested to EN 1366-4, EN 1366-3 and BS 476 Pt 20-22 in conjunction with FB750 Intubatt, FB770 Intudeck and FJ220 Intubatt 3
Used for sealing FB750 Intubatt/FB770 Intudeck/FJ220 Intubatt 3 on flexible walls, rigid walls & floors (usage dependent on product selected)
Acoustics up to 59 dB – Air seal up to 2,000 Pa
Provides a tested smoke seal
Optifire unique traceability identifiers -
Nullifire PR102 PE Joint Backer Rods
£97.10Used to control sealant depth in sealant joints, avoiding 3-sided adhesion.
Available in white.Important!
Selected items are Made To Order subject to a MOQ and an extended lead time – see ‘Size Reference’ below
