Description
Quick Links – Click To Jump To Section:
Features & Benefits
Sizes
Installation
Features & Benefits
Up to 2 hours fire resistance – tested to EN 1366-3
Ultra-slim body design ensures easy installation and reduces time on site
No fixings
Unaffected by moisture
Simple solution for angled pipes
Sizes
Please note: Selected items are Made To Order subject to a MOQ and an extended lead time – please see below
FP220510044 – 82 x 220mm – Lead time: 30 working days – MOQ: 1
FP220510046 – 125 x 220mm – Lead time: 30 working days – MOQ: 1
FP220510051 – 225 x 25 x 220mm – Lead time: 30 working days – MOQ: 1
FP220510052 – 300 x 25 x 220mm – Lead time: 30 working days – MOQ: 1
FP220510439 – 315 x 325mm – Lead time: 30 working days – MOQ: 1
FP220510440 – 250 x 325mm – Lead time: 30 working days – MOQ: 1
FP220510441 – 200 x 250mm – Lead time: 30 working days – MOQ: 1
Circular:
Diameter
Length
ø40
220
ø55
220
ø63
220
ø82
220
ø110
220
ø125
220
ø160
220
ø200
250
ø250
325
ø315
325
Rectangular:
Height
Width
Depth
204
60
220
220
90
220
110
54
220
225
25
220
300
25
220
Installation
All surfaces must be clean and sound, free from dirt, grease and other contamination
Check specification is suitable for service type, substrate and fire rating required
Tested combustable pipe material types: PE, HDPE, ABS, San+PVC, PP, PVC-C, UPONOR, DB, MLCP
Pull open FP220 and fit around combustable element, and close the sleeve using the retaining clips
Locate FP220 to the required position within the compartment line, ensuing equal overhang for each side where possible

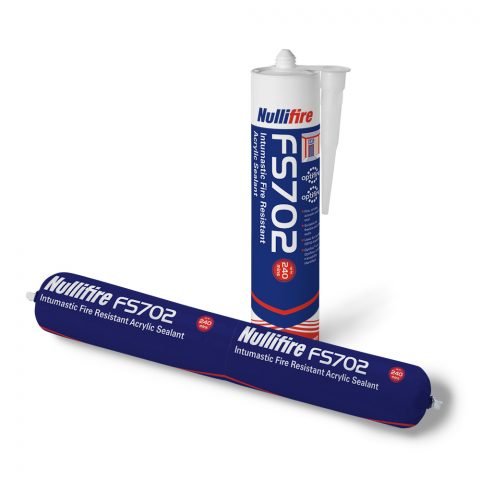

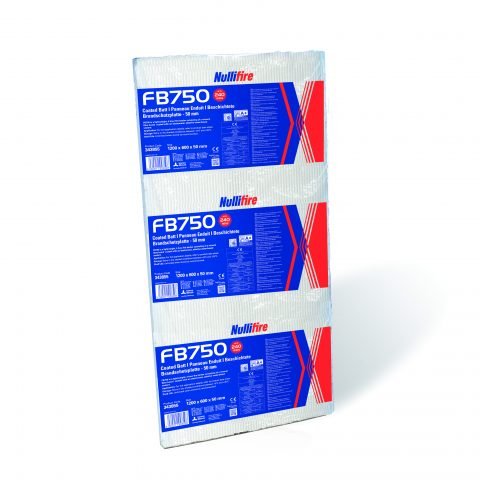

For gaps up to 20mm, FP220 may be sealed using FS702 Intumastic. For larger openings, may be sealed with FB750 Intubatt or FR230 Intucompound
Do not use around CPVC pipes – for this use FS719 HP Blue for CPVC
