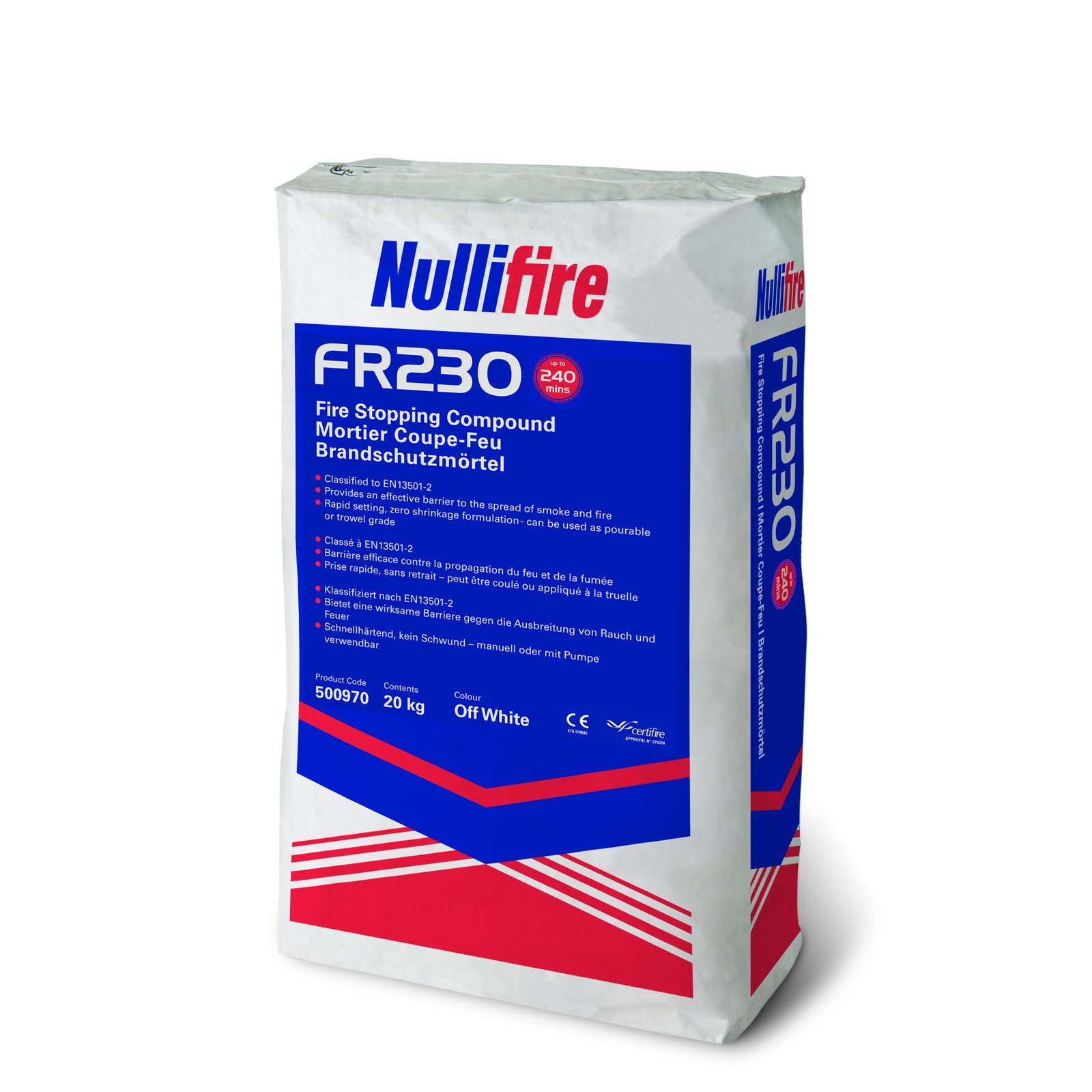

FR230 Intucompound Fire Mortar
Gypsum based mortar used to reinstate the fire resistance performance of floor constructions where the compartment line has been breached by service penetrations.
FR230 provides a safe working platform for loads upto 2.5 kg/m² when installed in full accordance to our recommendations. It is used to stop the spread of fire and smoke around services that pass through compartment walls and floors, whilst providing an unsupported load bearing capacity (see Specification Information). The system also provides thermal, acoustic and air sealing performance.
FR230 is suitable for the following service penetrations; single and bunched cables, cable trays, cable ladders, trunking**, non-combustible pipes, ducting/damper penetrations* and combustible pipes**.
Features & Benefits
• Provides an effective barrier to the spread of smoke and fire
• Fire resistance up to 240 minutes
• Certified to EN 1366-3:2009
• Rapid setting, zero shrinkage formulation – can be used as pourable or trowel grade
* Damper manufacturer should be consulted prior to application
**A suitable closer device will be required
Specification
Supplied in 20 kg bags
Mix Ratio: 2:1 powder to clean water (a stier mix may be required to aid application)
Coverage: 3.5 bags per m² at 100 mm depth
Maximum load capable unsupported opening: 1.21 m² at a depth of 100 mm
