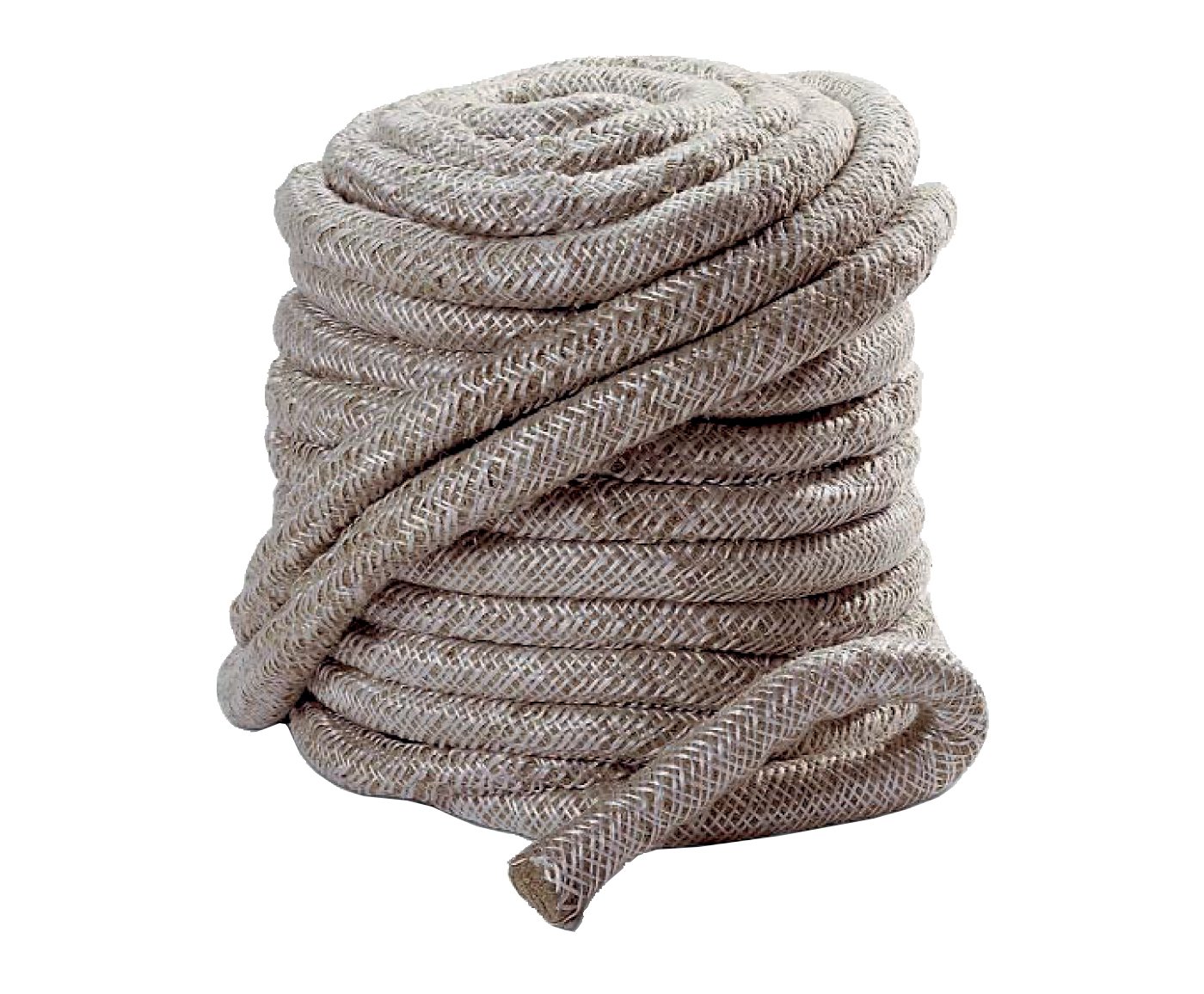

FJ203 Rope
A practical solution for fire sealing combustible pipes and ducting.
FJ203 is a non-combustible fire resistant woven rope, made of rock mineral fibre, and sheathed with flexible glass wires to make an easy to handle expansion joints product. It is designed to reinstate the fire compartment requirement, where expansion joints have been formed within masonry / concrete elements, in walls and floors.
Features & Benefits
• Up to 4 hours fire resistance – Tested to EN 1366-4
• Up to 150 mm joint width
• Suitable for irregular joints
• Easy to apply, easy to cut
• EDF nuclear approval
Specification
Circular, diameters: 40, 55, 63, 82, 110, 125 & 160 mm
Standard length: 220 mm
Length may be increased to suit angled pipe requirements
Rectangular sleeves also available
Colour: stainless steel (silver)
Related products
-
FR230 Intucompound Fire Mortar
Gypsum based mortar used to reinstate the fire resistance performance of floor constructions where the compartment line has been breached by service penetrations.
FR230 provides a safe working platform for loads upto 2.5 kg/m² when installed in full accordance to our recommendations. It is used to stop the spread of fire and smoke around services that pass through compartment walls and floors, whilst providing an unsupported load bearing capacity (see Specification Information). The system also provides thermal, acoustic and air sealing performance.
-
FS702 Intumastic Fire Resistant Acrylic
A water based acrylic sealant which cures to give a firm but flexible fire seal. Used to repair damage or bond to FB750 Intubatt.
FS702 Intumastic is suitable for use in various construction joints oering up to 30% movement capability whilst providing an excellent acoustic and air seal. It is suited for use around non-combustible services, cables, rock fibre insulated non-combustible pipes, using a minimum depth of 25 mm
-
FB750 Intubatt
Rock mineral fibre board with an ablative elastomeric coating.
FB750 Intubatt is a lightweight 4 hour fire barrier comprising of a rock mineral fibre board with a uniquely identifiable ablative coating, containing OptifireTM technology. Designed to reinstate the fire performance of compartment walls and floors which have been breached by penetrating services, provding a fire, smoke, thermal, acoustic and air pressure seal.
