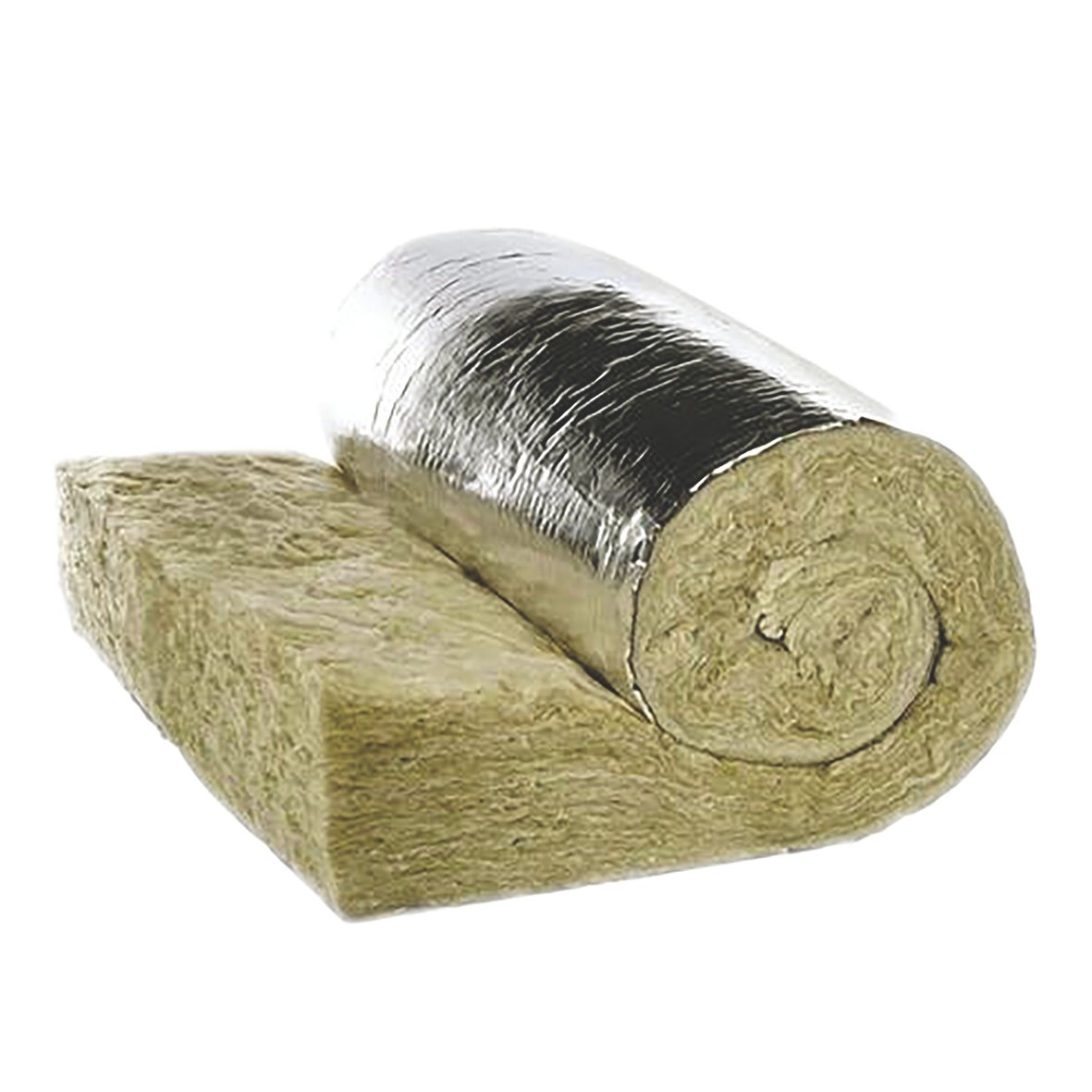

FI025 Intuflex Insulation Wrap

Designed to reinstate the fire insulation of services to the requirement of the compartment line in terms of EI.

FI025 Intuflex is a fire insulation upgrade material, primarily made from rock mineral fibre, with an outer layer of foil to provide a class O surface spread of flame around a class A1 core. It is designed to upgrade the insulation rating of uninsulated penetrated services (where required) which have been sealed using a Nullifire product.

Description

Tested around copper and steel pipes up to 160 mm diameter, cable trays, ladders and baskets, individual cables and cable bundles up to 100 mm diameter.

Features & Benefits
• Tested to EN 1366-3 with copper pipes, steel pipes, cable trays/ladders/baskets, individual cables and cable bundles
• Reinstates the insulation requirements of the compartment when applied around uninsulated service
penetrations
• Easy and fast installation
• Does not de-rate electrical cables

Specification
25 x 200 x 10 mm
Tolerances: ±2.5 mm
Density: 45 kg/m3
Supplied in individual boxes
